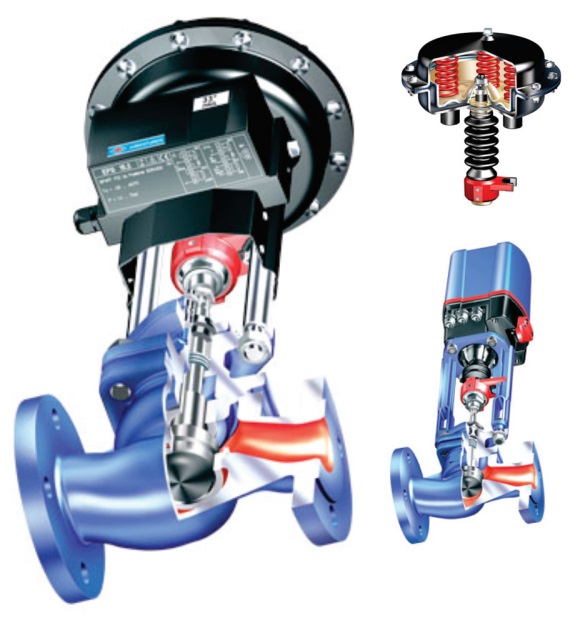

Flow Control Valves
Selection criteria:complex control task, critical operating conditions, specific requirements
Application:process technology, (heavy-) industrial complex, plant construction, chemical industry, power plant technology
Medium:Refrigerant, cooling water, warm water, hot water, thermal oil, steam, gas, etc. Control valve - straight through with shaft guided plug
4Production Size: 1/2" to 10"

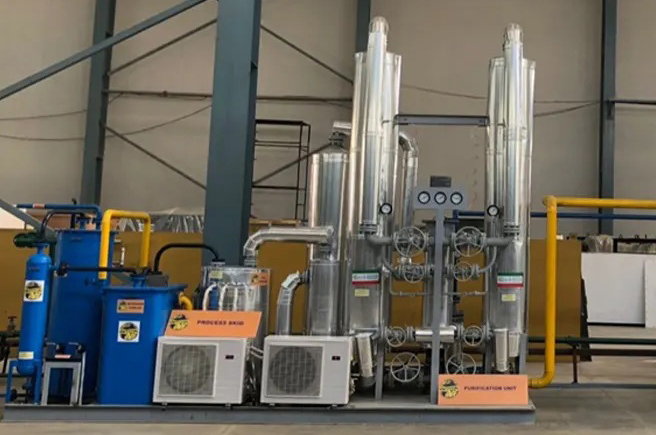

Considering the requirement of our Domestic and international clients and their specifications, our company has started exporting oxygen gas plant equipped with the state of the art features. The plants are employed with the latest European technology helping us not only producing economical plants, but also the machines that require low upkeep, maintenance cost and high performance. To generate oxygen and nitrogen gases, our plants take the air from an air compressor and separate the oxygen and nitrogen from other gases. Come up with different capacities ranging from 20 m3/hr to 5000 m3/hr, the oxygen gas producing plant produce 99.7% pure oxygen and nitrogen as a second product with purity upto 99.99%.
Our company uses a technology that is highly reliable with proven performance for a couple of years. With the domestic and international approach with experienced workforce, our organization has become an esteemed company for excellent designing features and efficient process cycle. With the state of the art and well equipped systems. We work with an aim to manufacture the same quality of plants designed and developed in Europe with a much cheaper labor cost and resources.

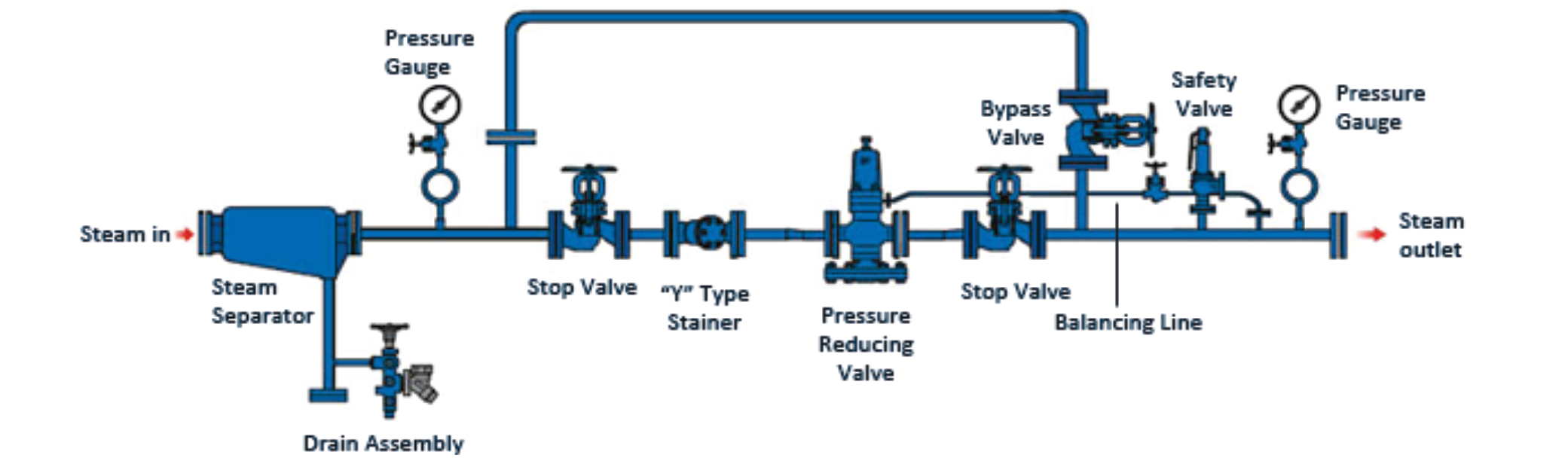

Pressure Reducing Station
Many industrial plants produce high-pressure Steam for process work. In many Of these plants, there is excess steam capacity available that can be utilized for other purposes, such as space heating, water heating, etc. process steam is often generated at a higher pressure than can be used for the Other purposes. Whatever the needs for lower pressure steam, a pressure reducing station will be required.
A pressure reducing station is more than just a reducing valve fed off a steam main. A properly designed and installed pressure reducing station takes into consideration velocity, good piping practices, and safety.
28), the next Step in designing the complete reducing station is to pipe size for velocity. The pressure difference created by the reducing valve creates higher steam velocity across the seat of the reducing valve. Sonic velocity will occur. The pipes going into or Out Of the reducing valve cannot tolerate this. Erosion Of materials and excessive noise will be generated. It is good practice to limit steam velocity to between 4000 and 6000 feet per minute to prevent erosion and noise. properly sized pipes also allow the downstream pressure sensing line to function. Excessive steam veloc'ty passing the sensing line connection will cause inaccurate variable pressures to be sensed as the load varies. Downstream pressure cannot be maintained.

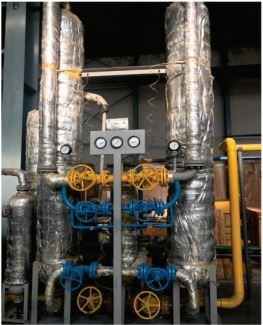

Dealing in gas/liquid like O2, N2, Argon Plants
A typical air separation plant divides atmospheric air into the three pure gaseous components of nitrogen (N2 ), oxygen (O2 ) and argon (Ar). Some plants provide further separation to include other gases such as neon, krypton and xenon. Other gas components of air, such aswater vapor, carbon dioxide (CO2 ) and hydrocarbons, are contaminants which must be removed to ensure safety, efficient plant operation and product purity/quality

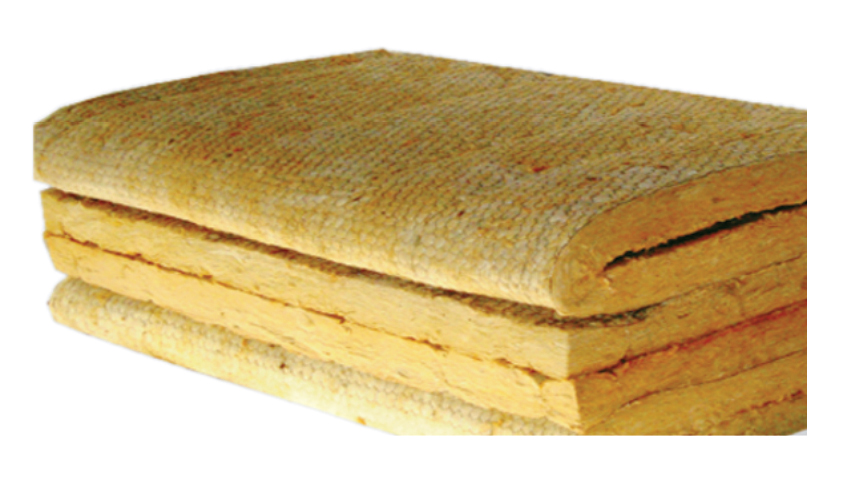

Rockinsulation LRB Mattresses
ROCKINSIJL LRB Mattresses are flexible rock fiber mattresses, stitched with wire mesh and manufactured from stable rock fibers bonded with a minimum quantity Of thermosetting resin binder. ROCKINSIJL LR3 Mattresses are light weight, strong, resilient, easy to handle and cut to suit intricate shapes

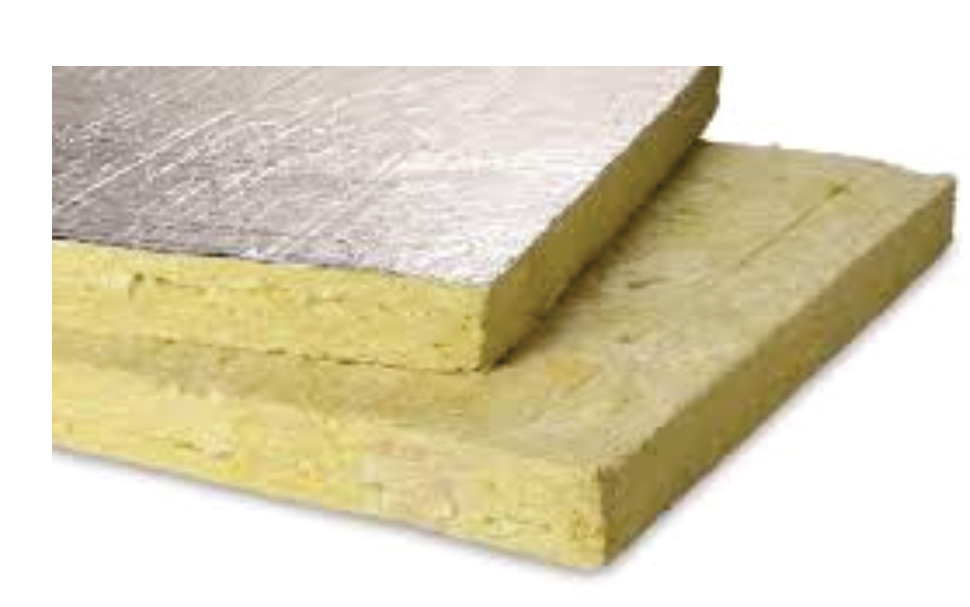

RBS Slabs
Light-density unfaced batts and rolls for installation within wall cavities, floors and ceilings. Available for metal or wood framing. May be used with a separate vapor retarder when moisture control is required. High-performance cathedral ceiling batts also available.
Production Sizes : 25mm, 50mm, 75mm, 100mm
Density : 48 Kg/M3
Each Slab Size: 1200x600 (or) 1200x1000mrn

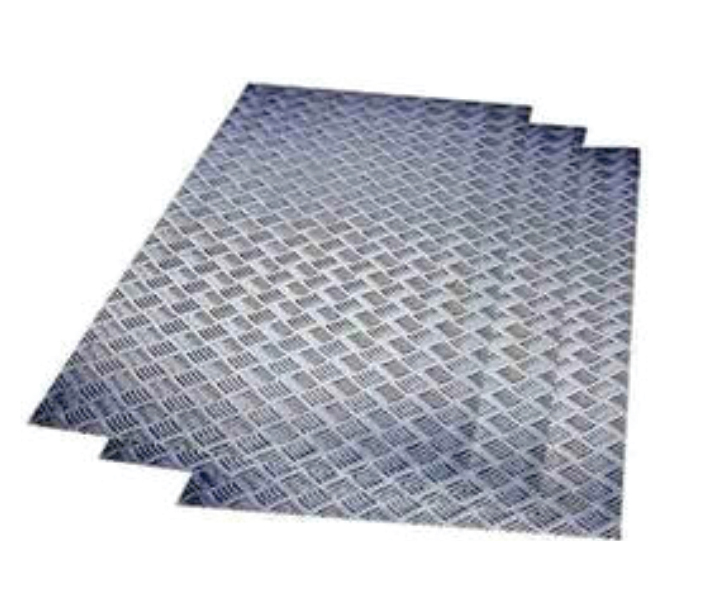

Checker Plates
Checker plate, also known as checker plate, diamond plate, tread plate and floor plate, is a type of lightweight metal stock with a regular pattern of raised diamonds or lines on one side.
Mengke strives to provide customers with a variety of checker plate products which can be used in residential elevator, stairways for security. We supply all types of checker plate, such as plate floor diamond, embossed tread plate, non-slip stair treads and checker plate flooring. These checker plates are available in standard galvanized plate, aluminum plate or stainless steel plate materials. Our checker plate's thickness varies from 2 mm to 22 mm, length and width from 250 mm to 4000 mm.
MS, GI, SS HDPE Pipes
MS Black pipe, Galvanized steel, Carbon steelSch. 40 seamless, ASTM 106, Others
Sizes : 25mm 250mm Especially Fire Fighting, ETP, High pressure Steam, Oil Et Water
Brands : TATA, Jindal, Sumitomo MSL
